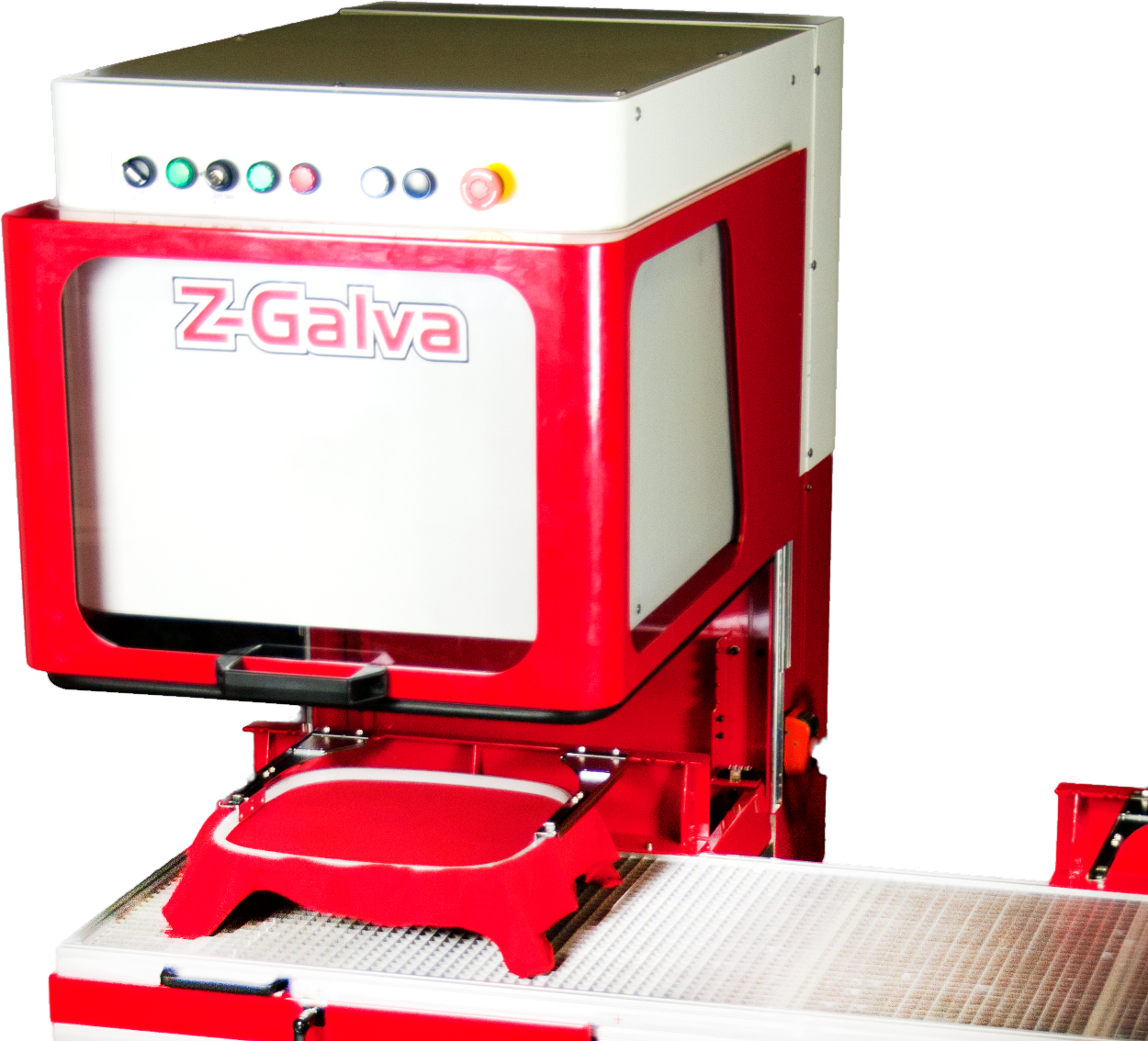

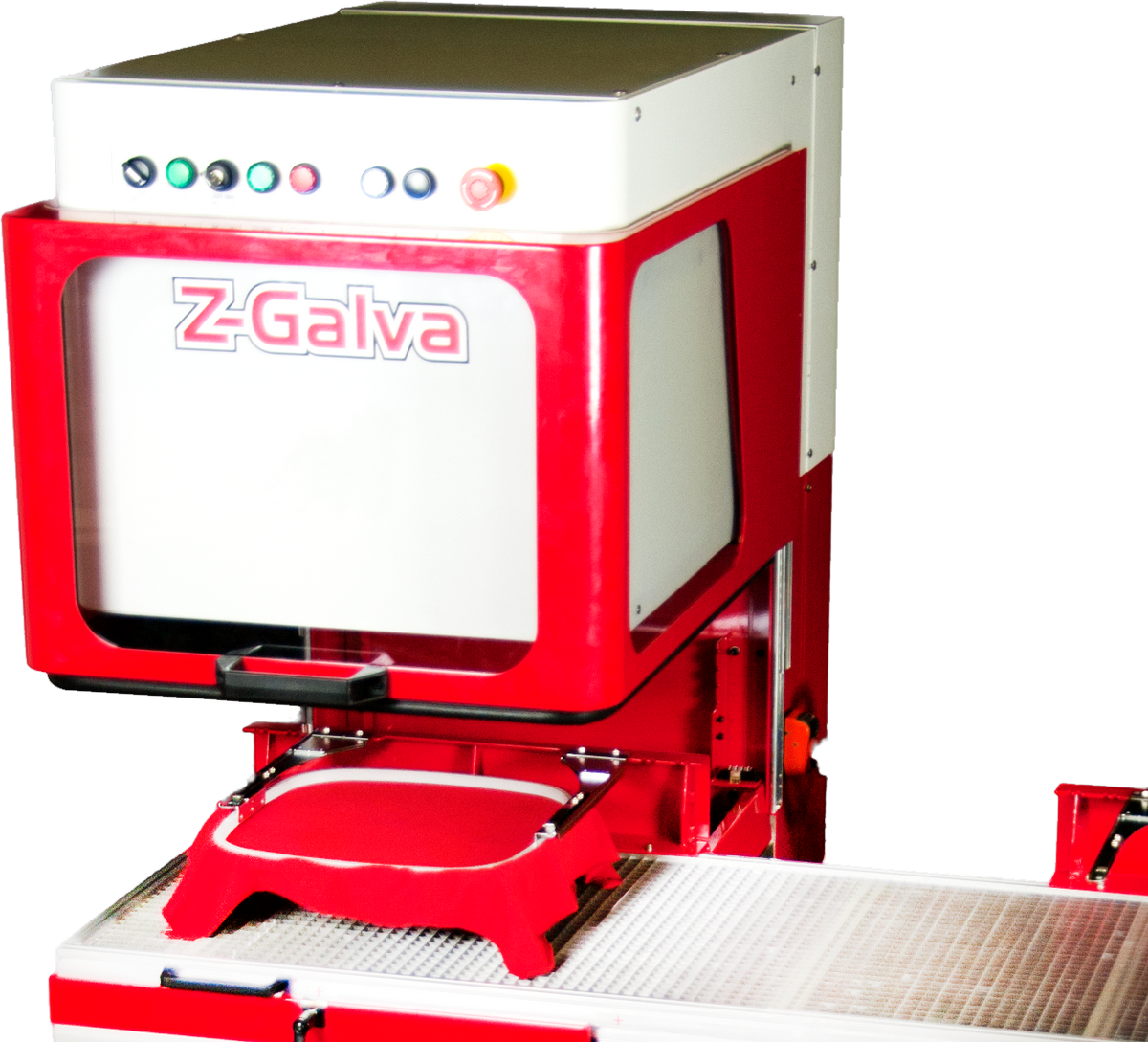

GCCZ-Galva
Fourth-generation standalone galvanometric laser machine — innovative production, high accuracy, and exceptional speed. The 4th-generation Z-Galva has a laser head that can move up or down to accommodate a greater va...
What you're buying.
Industrial-grade build, designed to run continuously through high-volume production days.
Why this machine.
About this machine.
Fourth-generation standalone galvanometric laser machine — innovative production, high accuracy, and exceptional speed.
The 4th-generation Z-Galva has a laser head that can move up or down to accommodate a greater variety of applications than any other in the history of standalone galvanometric laser machines. It provides innovative production options with a high degree of accuracy, flexibility, and quality — all at a very affordable price.
Z-Galva is equipped with a CO2 sealed CW laser source (liquid- or air-cooled) and a galvanometric head that delivers extremely fast working speed — up to 10 m/s — for a high level of productivity.
Available to work with many types of materials
Process materials such as wood, paper, textiles, anodized aluminum, non-toxic polymers, plexiglass, leather, and food. For this reason, Z-Galva is the ideal machine for many markets — including the textile, trophy, food and packaging, and leather markets.
Usable software for laser cutting
The distance between the work table and the laser emission point may be adjusted very easily, so Z-Galva can produce several types of products regardless of their height or thickness. A wide range of accessories makes the Z-Galva machine extremely versatile, allowing it to solve most of your production needs.
Available options
- Red pointer — easy and fast material positioning on the working area
- Double sliding frame — fast load/unload while processing material on another frame
- Camera system — precise cutting positioning on material already embroidered, woven, or printed
- Embroidery machine frame attachment — integrated process for embroidery / laser artworks (e.g. appliques)
- FocusCut X software (included)
Specifications
| Technology | Galvo 2-axis, digital interface, high performance |
|---|---|
| Application | Cutting and engraving on non-metallic materials |
| Deployment | Stand-alone, integrated, or in-line |
| Machine dimensions (W×D×H) | 594 × 1,144 × 1,834 mm |
| Weight | 270 kg (max. 330 kg) |
| Table working area (W×D) | 500 × 500 mm |
| Cutting plane | Anti-reflection aluminum grid with suction; adjustable height |
| Fume extraction | High-efficiency external turbine, 240Vac (included); sealed area with adjustable hood |
| Laser power | CO2 sealed: 30W / 50W / 60W / 75W (air cooled) |
| Laser working area (W×D) | 300 × 300 mm or 400 × 400 mm |
| Max processing speed | Up to 10 m/s |
| Software | FocusCut X (included) |
| User interface | PC / tablet (not included) + control panel |
| Power supply | Single phase 220/240 Vac, 50/60 Hz |
| Max absorbed power | 1.4 kVA with 50W laser (max 1.7 kVA) |
| Materials | Wood, paper, textiles, anodized aluminum, non-toxic polymers, plexiglass, leather, food |
| Target markets | Textile, trophy, food/packaging, leather |
