VastexD-100
Compact entry-level infrared conveyor dryer for small shops, mobile printers, and on-site production. The Vastex D-100 is an entry-level tabletop infrared conveyor dryer with an 18 in. (45.7 cm) wide belt that cures ...
What you're buying.
Industrial-grade build, designed to run continuously through high-volume production days.
Why this machine.
About this machine.
Compact entry-level infrared conveyor dryer for small shops, mobile printers, and on-site production.

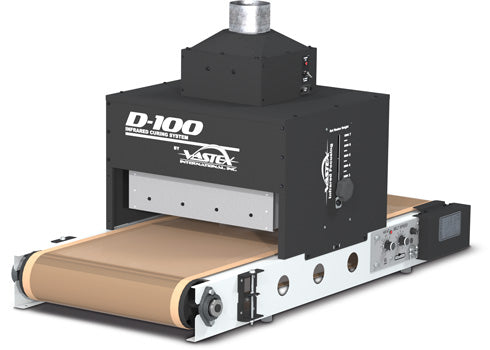

The Vastex D-100 is an entry-level tabletop infrared conveyor dryer with an 18 in. (45.7 cm) wide belt that cures up to 110 plastisol-printed garments/hr, 50 discharge-printed garments/hr, and DTF adhesives at high rates. Adjustable heater height/angle, heat intensity, and belt speed give the operator full control.
The D-100 has a tilting heater design that works great for curing hats or mugs. Hi/Lo heat adjustment and variable belt speed put production firmly in your hands. A dense coil pattern, heater shields, and a 6.35 watt-per-square-inch infrared heater eliminate hot and cold spots and provide the power you need to get the job done. Available in 120V and 240V models, with optional powered exhaust to remove moisture and fumes — critical for rapid drying of water-based inks and discharge, and for curing DTF adhesives.
Heater width
16" (41 cm) infrared heater with tight coil pattern and heat shields.
Adjustable
Speed, temperature, heater height, and tilt — all under operator control.
Fast
110+ shirts per hour with plastisol and 50+ with discharge.
Precise
Powerful infrared heater with tight coil pattern and heat shields — no cold spots, no under-curing.
Belt width
18" (46 cm) maximum garment width.
Valuable
Best warranty, high quality, and exceptional service.
Compact
"X-Series" Conveyor Belt Tracking System with Teflon-coated fiberglass belt. Total footprint less than 8 sq.ft (2.44 sq.m) — fits utility carts with tops as small as 24 in. square, ideal for small shops and mobile screen printers powering on-site at fairs, concerts, and trade shows.
Additional features
- Low power draw (1,625W) — runs on small generators for mobile printing
- Available in 120V (NEMA 5-15P) and 240V (NEMA 6-15P) models

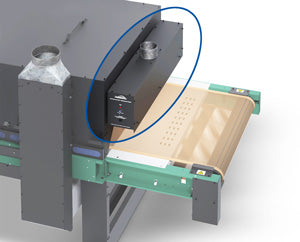

- Optional powered exhaust for water-based, discharge, and DTF
- Optional stands with wheels
- 5-year heater warranty
Specifications
| Belt width | 18 in. (46 cm) |
|---|---|
| Heater width | 16 in. (41 cm) |
| Overall dimensions | 46 in. long × 24 in. wide |
| Footprint | Less than 8 sq.ft (2.44 sq.m) |
| Voltage options | 120V (NEMA 5-15P) or 240V (NEMA 6-15P) |
| Total wattage | 1,625W |
| Heater density | 6.35 watts per sq-in infrared |
| Throughput — plastisol | 110+ garments/hr |
| Throughput — discharge | 50+ garments/hr |
| Heater features | Tilting, height-adjustable, hi/lo heat |
| Belt material | Teflon-coated fiberglass with X-Series tracking |
| Options | Powered exhaust, stand with wheels |
| Heater warranty | 5-year |
