STSCylindrical UV Printer
Professional digital cylindrical UV printing — designed for round objects with virtually no material restrictions. The STS C-3 Cylinder UV printer is purpose-built for printing on round objects, with a wide range of ...
What you're buying.
Industrial-grade build, designed to run continuously through high-volume production days.
Why this machine.
About this machine.

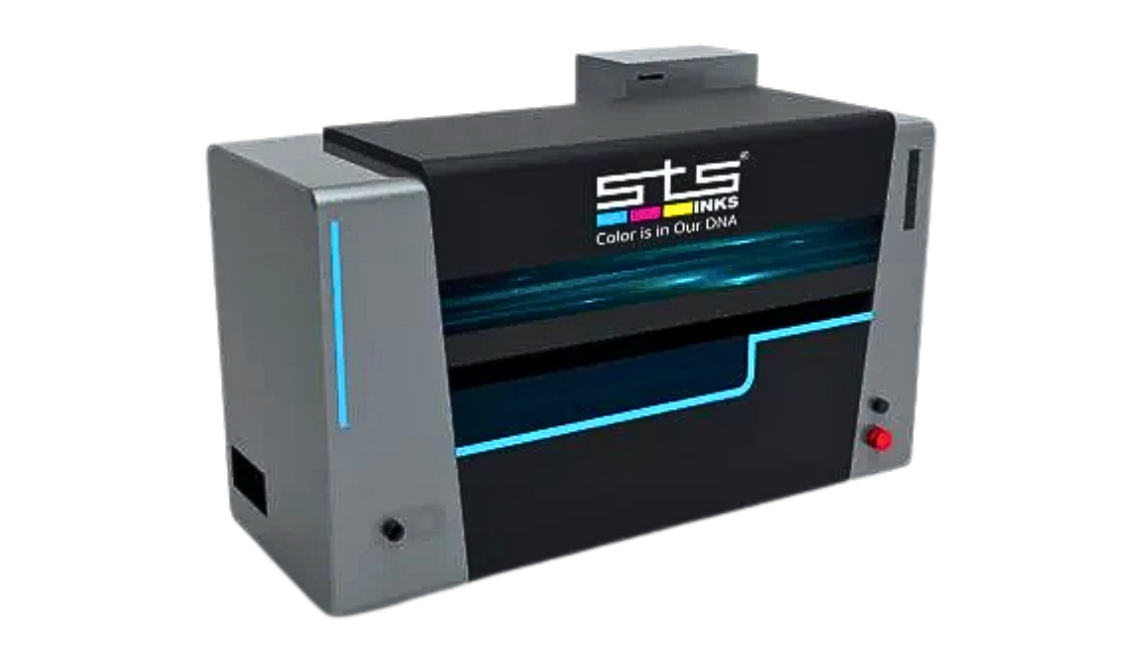

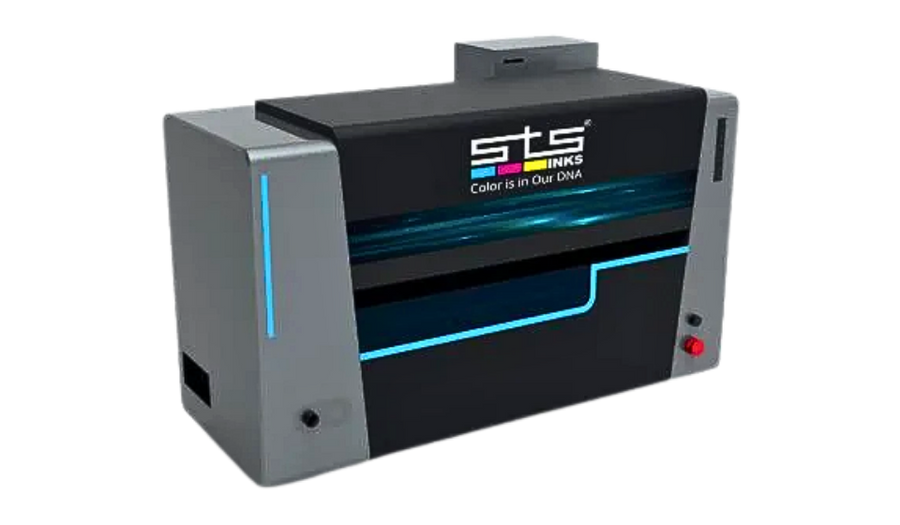

Professional digital cylindrical UV printing — designed for round objects with virtually no material restrictions.
The STS C-3 Cylinder UV printer is purpose-built for printing on round objects, with a wide range of applications and no material restrictions — stainless steel thermos cups, wine bottles, cosmetic bottles, tea cans, beverage cans, and any other cylindrical or conical product that needs full-color decoration. Print directly to the surface with no pretreatment step.
Discover the print difference
The digital revolution in UV decoration delivers crystal and metallic effects by pasting directly to the material surface after printing. No pretreatment, no transfer, no secondary curing station — just load the bottle, print, and pull it off ready to sell.
Variable ink-drop technology
Variable Ink Drop Technology controls the voltage powering the print-head components so that the same nozzle can deposit ink in various sizes as needed — producing high-quality images at high speed with vibrancy and smooth gradations.
Automatic bottle adjustment
Built-in sensors detect the varying sizes of each bottle and automatically adjust the print settings to ensure precise output, eliminating the need for manual adjustments between different products.
Powerful high-drop printing
Supports 8 mm high-drop printing, with automatic laser measurement of product shape for precise positioning. This enables seamless, accurate printing on irregularly shaped products — not just perfect cylinders.
Various print sizes
The system supports a printing length from 0 to 9.4 inches and a printing diameter from 2.1 to 7 inches, enabling compatibility with a wide variety of products — thermos cups, cylindrical electronic devices, wine bottles, and more. This versatility opens up applications across multiple industries.
Strong adhesion across substrates
Compatible with a wide range of printing materials, whether conical or cylindrical, transparent or opaque. The C-3 prints cleanly on glassware, water bottles, candles, golf balls, baseballs, food cans, and other objects — delivering excellent adhesion for long-lasting results.
Application details
- Stainless steel thermos cups
- Wine bottles and glassware
- Cosmetic bottles and packaging
- Tea cans, food cans, beverage cans
- Cylindrical electronic devices
- Candles, golf balls, baseballs, and other personalized goods
Specifications
| Model | STS C-3 |
|---|---|
| Printer type | Cylindrical UV inkjet |
| Print head | Epson i1600 |
| Number of print heads | 3 |
| Ink mode | CMYK + White + Varnish (CMYK+W+V) |
| Ink type | Eco UV curing ink |
| Ink system | Siphon positive-pressure ink supply |
| Print resolution | 720 – 2880 DPI |
| Print length | 0 – 240 mm (0 – 9.44″) |
| Print diameter | 55 – 180 mm (2.16 – 7.08″) — supports 12″ taper |
| Curing system | LED UV |
| RIP software | CADlink, FlexiPRINT, or Inedit |
| File formats | TIFF, JPEG, EPS, PDF, and more |
| Platform | Special printing fixture (jig-based) |
| Interface | High-speed USB 3.0 |
| Voltage | AC 110V ± 10% |
| Rated power | 1300W |
| Operating temperature | 15°C – 30°C (57°F – 86°F) |
| Operating humidity | 30% – 70% RH |
| Dimensions (L × W × H) | 1340 × 480 × 730 mm (52.7″ × 18.9″ × 28.74″) |
| Weight | 295.4 lbs |
Service that keeps you running.
An industrial machine that doesn't print is just a heavy table. We've spent 30 years making sure that doesn't happen — installations, training, parts in stock, same-week service across SoCal.
On-site install
Berto delivers and installs. Day-of training included.
Same-week service
Field service across SoCal. No "wait two weeks for a tech."
Parts in stock
Common consumables and replacement parts ship same-day.
Training included
First-day operator training plus access to our Saturday workshops.
Everything that runs on this.
Inks, films, parts, and accessories — stocked and shipped from our SoCal warehouse.
Talk to a dealer who runs the same equipment.
Tell us what you're producing and what you're trying to fix. We'll send a quote with the right config and schedule a demo at our showroom.
