NeoltXY Trimmer
Neolt is revolutionizing XY DTF digital finishing. The revolutionary Neolt XY DTF Cutter Series is a professional, game-changing solution for cutting Direct-to-Film (DTF) and Heat Transfer Vinyl (HTV) materials. Desi...
What you're buying.
Industrial-grade build, designed to run continuously through high-volume production days.
Why this machine.
About this machine.

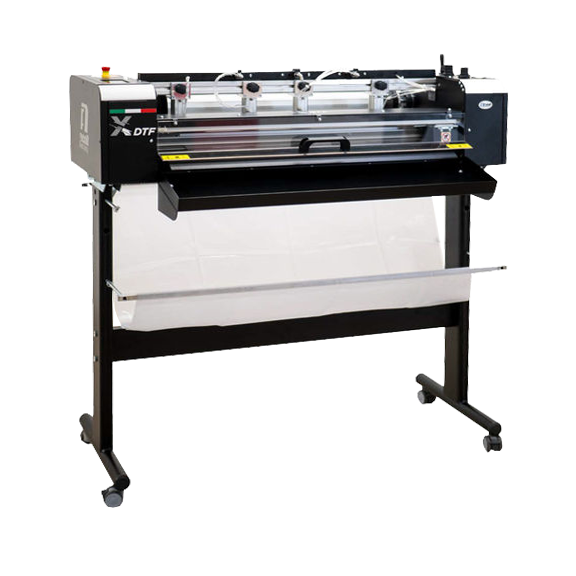

Neolt is revolutionizing XY DTF digital finishing.

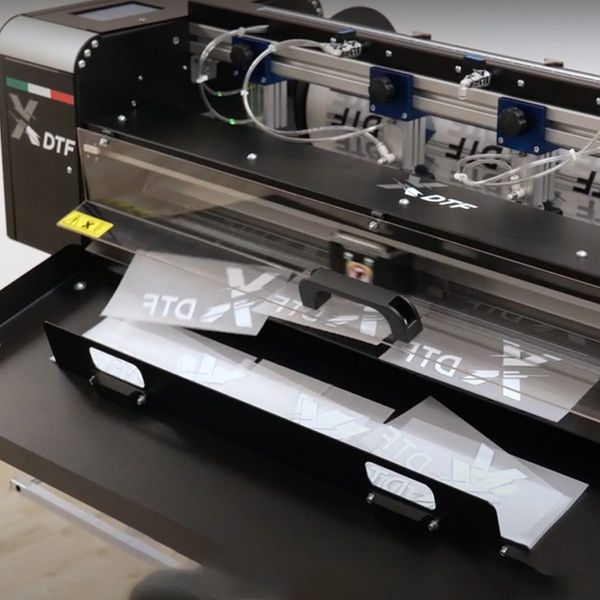

The revolutionary Neolt XY DTF Cutter Series is a professional, game-changing solution for cutting Direct-to-Film (DTF) and Heat Transfer Vinyl (HTV) materials. Designed to cater to craft enthusiasts, print service providers, and promotional products businesses, this professional-grade machine offers a new standard for finishing 30″-wide film and flexible media.
A masterpiece of Italian engineering, the Neolt XY Cutter slits or trims DTF and HTV materials along two dimensions, providing unparalleled precision and flexibility. Its robust internal compressor powers both the pressure roller for material advancement and the pneumatic vertical blade — making it a precise, production-ready tool for processing printed DTF and HTV designs.
Applications: DTF · UV DTF · Flock · Heat Transfer Vinyl (HTV) · Glitter Vinyl · Vinyl · Reflective
Efficiency
The XY cutter automates the trimming process, significantly reducing manual labor and increasing productivity across every shift.
Precision
High-speed cutting precision ensures professional-quality cuts and less waste from errors — with a sensor reading accuracy of 0.05 mm.
Versatility
Handles a wide range of materials, including paper, vinyl, laminates, canvas, polyester, polycarbonate film, and more.
Ease of use
An intuitive touch-screen interface reduces the learning curve and minimizes operator errors.
Speed
Designed and built for high-speed production to increase efficiency and volume of output — up to 500 linear meters per hour.
Durability
Built to withstand long-term, high-volume operations with self-sharpening blades that last hundreds of thousands of cuts.
Cost savings
By automating the cutting process, reducing waste, and speeding up production, the XY trimmer saves you money and time on every run.
Two operating modes
- Automatic mode — programmed size and number of copies
- Mark mode — two mark lines for automatic cutting
Rotary crush cutters
The lengthwise rotary crush cutters are safe for the operator, last for hundreds of thousands of cuts with low maintenance costs, and require no special cleaning after cutting adhesive media — they create a "dry," non-sticky edge.
Expertly designed

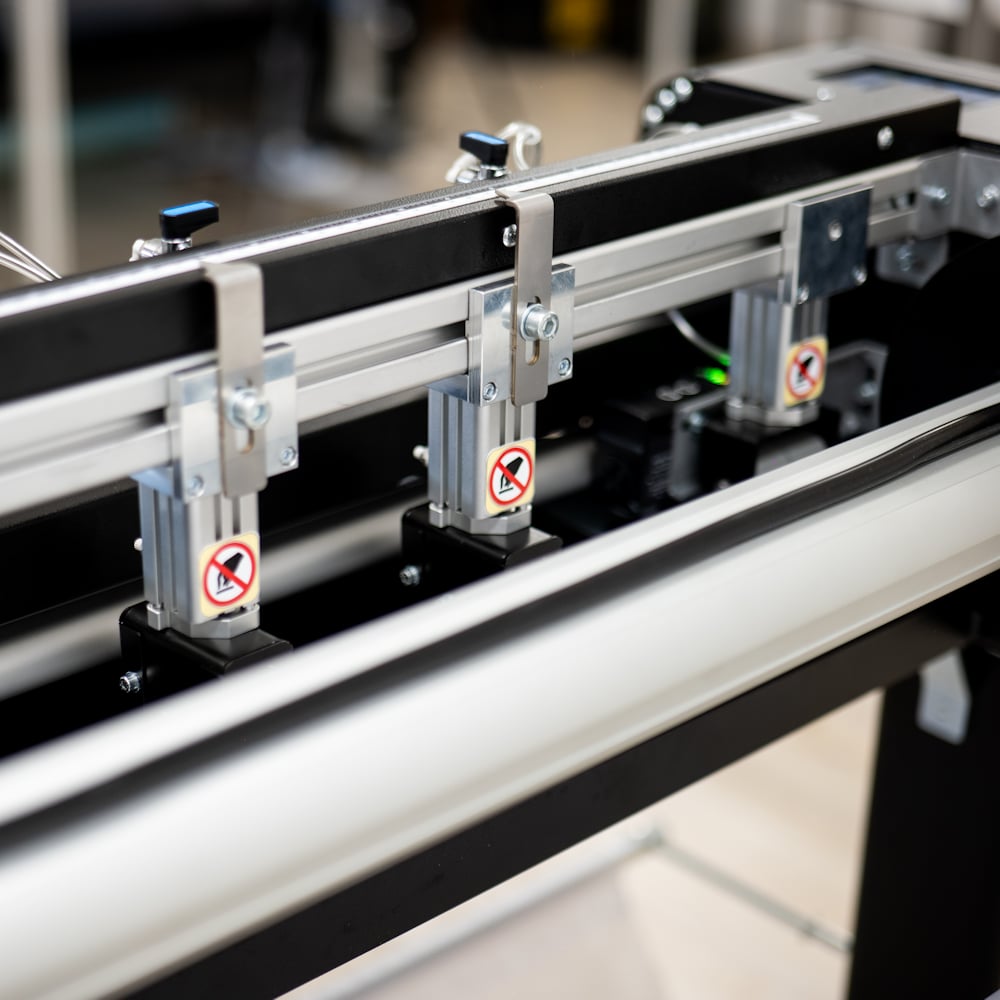

- Multiple simultaneous cutting units trim all four sides of a print
- Mobile optical sensor automatically detects industry-standard cut marks for precise horizontal alignment
- Self-sharpening vertical and horizontal blades
- Adjustable slitter blades for manually-configurable multiple vertical cuts

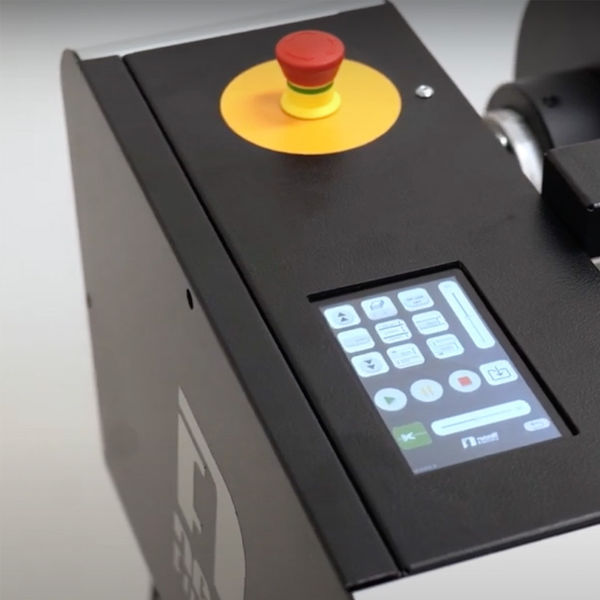

- Easy-to-use touch-screen control panel
- Advanced cutting-mark reader for perfect cuts
- Optical sensor for vertical alignment
- Fine positioning of the cutting blades
- Pressure adjustment according to material type
- Mechanical movement — modify the angle inclination of the roll media
- Ready to use — internal air compressor built in
- Electronic controls with error-detection display
- Easy roll-loading mechanism
- 9 speed settings with up to 40 preset channels (LCD keypad control)
- Optional collection tray
- Optional laser module for visual cut alignment
- Optional single or double vertical blade upgrade
- Optional online connectivity kit compatible with most major printers
Support
CUTWORX USA is committed to providing top-tier customer support to help you maximize your machine's capabilities.
Specifications
| Model variants | XY Matic Trim, XY Matic Trim Plus, XY Matic Trim Plus 3300, XY DTF |
|---|---|
| Maximum cutting width | 1,650 mm (165 cm) — Plus 3300 model available at 3,300 mm |
| Horizontal cut max thickness | 1.2 mm |
| Vertical cut max thickness | 0.5 mm |
| Cutting speed (horizontal) | 40 m/min |
| Cutting speed (vertical) | 12.5 m/min |
| Production speed | Up to 500 linear meters/hour |
| Tolerance | ±1 mm per meter |
| Sensor reading accuracy | 0.05 mm |
| Max roll diameter | Ø 300 mm |
| Max roll width | 1,650 mm |
| Max roll weight | 60 kg |
| Machine dimensions | 1650 × 2160 × 800 × 1110 mm |
| Machine weight | 95 kg |
| Power consumption | 0.5 A |
| Country of manufacture | Italy |
| Compatible materials | Wallpaper, laminated/encapsulated paper, canvas, polyester, reflective material, PVC banners, vinyl and adhesive vinyl, backlit and front-facing displays, magnetic rubber, polycarbonate film |
