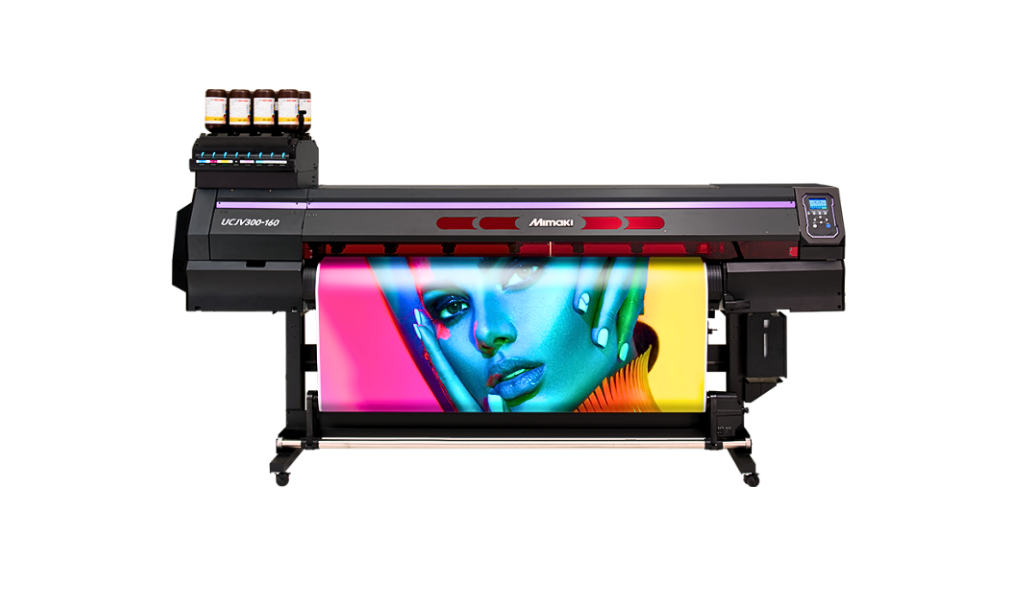

MimakiUCJV300 Series
Leading the way for UV-LED technology. The UCJV300 Series is a revolutionary print-and-cut family that offers in-line cutting capabilities and features multi-layer printing for transitional or double-facing images. G...
What you're buying.
Industrial-grade build, designed to run continuously through high-volume production days.
Why this machine.
About this machine.
Leading the way for UV-LED technology.
The UCJV300 Series is a revolutionary print-and-cut family that offers in-line cutting capabilities and features multi-layer printing for transitional or double-facing images. Graphics are instantly cured, so you can efficiently create applications that meet — and exceed — your customers' needs.
Print and cut in a single pass
Available in 32″, 42″, 54″, and 64″ widths with print speeds up to 277.7 sq ft/hr, the UCJV300 combines wide-format inkjet printing with on-board contour cutting. One machine, one workflow, one operator — finished graphics roll off the back ready to install.
Instantly cured output
UV-LED ink cures the moment it hits the substrate, so prints are ready to laminate, cut, and ship immediately. That means shorter turnarounds, less production floor space tied up drying jobs, and additional cost savings on consumables.
Highest media versatility
The UCJV300 prints on a broad range of substrates with unparalleled scratch resistance, opening doors to applications like vehicle wraps, floor graphics, wallpaper, window film, backlits, and POP displays.
Multi-layer printing for transitional graphics
Layer color and white ink to produce day-night graphics, double-facing window decals, and high-impact backlit signage. The UCJV330 successor expanded this with 2.5D emboss and watermark printing — and the UCJV300 series introduced the workflow that made it possible.
Eco-friendly UV-LED inks
UV-LED light sources have low power consumption and long life. The inks themselves are low-VOC and GREENGUARD Gold certified — friendly to operators and the environment. UCJV300 inks (LUS-170, LUS-175) carry a 3M™ MCS™ Warranty and Avery Dennison™ ICS™ Performance Guarantee.
RasterLink6 Plus with ID-cut included
Mimaki's RasterLink6 Plus RIP software ships with the UCJV300 and includes the ID-cut function for fully automated print-cut workflows: print, scan, cut, no manual registration needed.
Models
- UCJV300-75 — Maximum print/cut width: 800 mm (31.5″)
- UCJV300-107 — Maximum print/cut width: 1,090 mm (42.9″)
- UCJV300-130 — Maximum print/cut width: 1,361 mm (53.6″)
- UCJV300-160 — Maximum print/cut width: 1,610 mm (63.4″)
Corresponding inks
- UV-Curable LUS-170
- UV-Curable LUS-175
- UV-Curable LUS-200
Specifications
| Printer type | UV-LED print & cut |
|---|---|
| Available widths | 800 mm / 1,090 mm / 1,361 mm / 1,610 mm |
| Maximum print speed | Up to 277.7 sq ft/hr |
| Ink type | UV-LED curable (LUS-170 / LUS-175 / LUS-200) |
| Certifications | GREENGUARD Gold |
| Multi-layer print | Yes — up to 5 layers including day/night graphics |
| Onboard cutter | Yes — contour cut with ID-cut support |
| RIP software | RasterLink6 Plus with ID-cut (included) |
| Media warranty | 3M™ MCS™ Warranty (LUS-200); Avery Dennison™ ICS™ Performance Guarantee (LUS-170/200) |
Service that keeps you running.
An industrial machine that doesn't print is just a heavy table. We've spent 30 years making sure that doesn't happen — installations, training, parts in stock, same-week service across SoCal.
On-site install
Berto delivers and installs. Day-of training included.
Same-week service
Field service across SoCal. No "wait two weeks for a tech."
Parts in stock
Common consumables and replacement parts ship same-day.
Training included
First-day operator training plus access to our Saturday workshops.
Everything that runs on this.
Inks, films, parts, and accessories — stocked and shipped from our SoCal warehouse.
Talk to a dealer who runs the same equipment.
Tell us what you're producing and what you're trying to fix. We'll send a quote with the right config and schedule a demo at our showroom.
