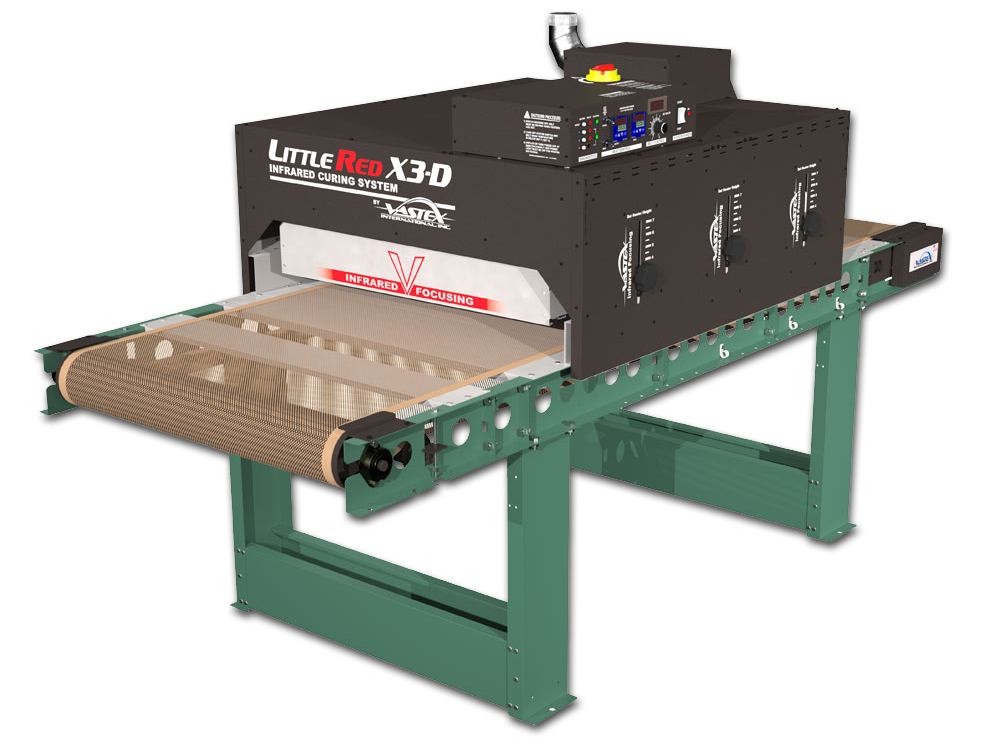

VastexLittle Red X3D
Multi-purpose infrared dryer that cures DTG, plastisol, water-based, discharge, and DTF adhesives at high rates. The all-new multi-purpose LittleRed X3D infrared dryer cures direct-to-garment (DTG) printed textiles a...
What you're buying.
Industrial-grade build, designed to run continuously through high-volume production days.
Why this machine.
About this machine.
Multi-purpose infrared dryer that cures DTG, plastisol, water-based, discharge, and DTF adhesives at high rates.
The all-new multi-purpose LittleRed X3D infrared dryer cures direct-to-garment (DTG) printed textiles as well as plastisol, water-based, and discharge-printed garments at higher rates than possible with conventional dryer designs. It features a high-powered pre-heating zone that rockets ink temperatures past 300°F (149°C) within the first several inches of conveyor travel — maximizing the distance and dwell time for optimum curing of any ink and allowing increased conveyor belt speeds and dryer output.
Little Red X3D-30
The X3D-30 model is equipped with a 30 in. (76.2 cm) wide conveyor belt and three 24 in. (61 cm) wide infrared heaters (8,300W @ 240V total wattage). It cures 360+ plastisol-printed garments/hr, 100+ water-based or discharge-printed garments/hr, and up to 50+ garments/hr inkjet-printed with digital white ink.
Little Red X3D-54
The 54 in. (137 cm) wide LittleRed X3D model cures 720+ plastisol-printed garments/hr, 240+ water-based or discharge-printed garments/hr, and 100+ garments/hr inkjet-printed with digital white ink or pretreated for DTG printing.
Flexible
Can cure plastisol, water-based, discharge, and inkjet-printed white ink — as well as DTF adhesives — in record time.
Powerful
8,300W @ 240V total wattage on the X3D-30; available in 30, 54, and 78 in. belt widths.
Dependable
Industry-leading heater warranty.
Efficient
Closely spaced coils provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curing.
Consistent
Low-friction belt aligner and DC belt speed control with digital display.
Heavy duty
"X-Series" Conveyor Belt Tracking System with Teflon-coated fiberglass belt.
Fast
- 360+ garments/hr for plastisol inks
- 100+ garments/hr for water-based or discharge inks
- 51+ garments/hr for DTG digital white ink @ 3 minutes
- 38+ garments/hr for DTG digital white ink @ 4 minutes
Accurate
Digital PID temperature controller accurate to ±1°F.
Adjustable
2–7 in. (5–18 cm) belt-to-heater clearance, adjustable separately on each side for each heater.
Expandable
Add 24 in. (61 cm) chambers and/or 18 in. (46 cm) belt extensions.
Options
- Additional heating chambers and conveyor belt extensions
- Heavy-duty belt motor (recommended for longer conveyor belts)
- Locking casters for mobility
Specifications
| Belt widths available | 30 in. (76 cm), 54 in. (137 cm), 78 in. (198 cm) |
|---|---|
| Heater widths | X3D-30: 24 in. (61 cm); X3D-54: 48 in. (122 cm); X3D-78: 72 in. (183 cm) |
| Heating chamber length | 41 in. (104 cm) — all models |
| Conveyor length | X3D-30 & X3D-54: 88 in. (224 cm); X3D-78: 102 in. (260 cm) |
| Voltage | 240V |
| Total wattage (X3D-30) | 8,900W |
| Total wattage (X3D-54) | 17,800W |
| Total wattage (X3D-78) | 26,700W |
| Max preheat temperature | Past 300°F (149°C) |
| Throughput (X3D-30) | 360+ plastisol/hr, 185+ water-based or discharge/hr, 51+ DTG digital white/hr (3 min dwell) |
| Throughput (X3D-54) | 720+ plastisol/hr, 370+ water-based or discharge/hr, 103+ DTG digital white/hr (3 min dwell) |
| Throughput (X3D-78) | 1,080+ plastisol/hr, 555+ water-based or discharge/hr, 155+ DTG digital white/hr (3 min dwell) |
| Temperature accuracy | ±1°F (dual digital PID) |
| Belt material | Teflon-coated fiberglass |
| Heater warranty | 5-year |
