Grando600
UV direct-to-film roll-to-roll printing machine — digital revolution technology for crystal and metallic transfers. The Grando 600 (GD600Super) is a 600 mm-wide UV Direct-to-Film roll-to-roll printer. Its digital rev...
What you're buying.
Industrial-grade build, designed to run continuously through high-volume production days.
Why this machine.
About this machine.
UV direct-to-film roll-to-roll printing machine — digital revolution technology for crystal and metallic transfers.

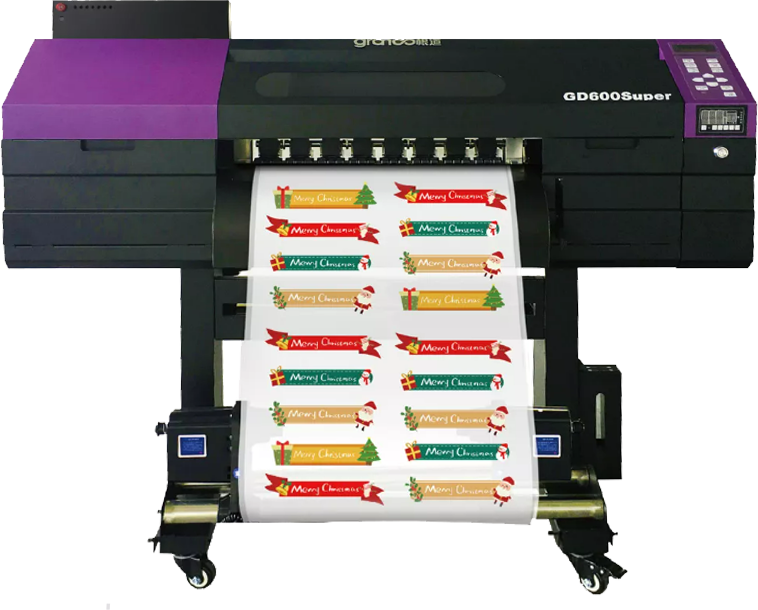

The Grando 600 (GD600Super) is a 600 mm-wide UV Direct-to-Film roll-to-roll printer. Its digital revolution technology produces crystal and metallic signage that pastes directly to the material surface after printing — conveniently, without pretreatment, drying, or heating. With up to four Epson i1600-U1 printheads, dual UV-LED curing lamps, and a CMYK + White + Varnish ink set, it delivers scratch-resistant, waterproof, lightfast prints that bond to flat and curved surfaces alike.
UV crystal label printing
Crystal and metallic transfers produced inline, ready to apply directly to the substrate after printing.
No drying process required
Dual UV-LED curing lamps fix the print as it leaves the heads — no separate drying station needed.
No heating process required
Transfers apply by direct adhesion. No heat press or curing oven required to bond to the substrate.
Good adhesion on curved or rugged surfaces
The UV-cured film adheres reliably to substrates that traditional decoration methods struggle with — including curved, rough, and irregular surfaces.
UV direct print effect
Bright color and high-quality finished output, beyond your imagination.
Product attributes
- Scratch-resistant and durable
- Strong adhesion to most surfaces
- Bright color and high quality of finished products
- Waterproof, lightfast, and dirt-free
- Applicable to hard, flat, or curved surfaces
- Metallic effect with gold or silver finishes — a difference that makes a difference
Specifications
| Model | GD600Super |
|---|---|
| Print width | Up to 600 mm (24 inches) |
| Printheads | Up to 4 × Epson i1600-U1 |
| Resolution | Up to 2,400 × 1,200 dpi |
| Ink configuration | CMYK + White + Varnish |
| Media type | PET film sheets or roll-to-roll |
| Print speed | Approx. 7 m²/h at 720 × 1,200 dpi (8-pass mode) |
| Curing method | Dual UV-LED lamps |
| Connectivity | Gigabit Ethernet |
| Software | Maintop 6.1 or Photoprint RIP compatible |
| Power consumption | ~3,500W |
| Applications | Textiles, wood, acrylic, leather, glass, metal |
Documents
Service that keeps you running.
An industrial machine that doesn't print is just a heavy table. We've spent 30 years making sure that doesn't happen — installations, training, parts in stock, same-week service across SoCal.
On-site install
Berto delivers and installs. Day-of training included.
Same-week service
Field service across SoCal. No "wait two weeks for a tech."
Parts in stock
Common consumables and replacement parts ship same-day.
Training included
First-day operator training plus access to our Saturday workshops.
Everything that runs on this.
Inks, films, parts, and accessories — stocked and shipped from our SoCal warehouse.
Talk to a dealer who runs the same equipment.
Tell us what you're producing and what you're trying to fix. We'll send a quote with the right config and schedule a demo at our showroom.
