HotronixFusion IQ
The smartest heat press in the industry. The Hotronix® Fusion IQ® is a digitally advanced heat transfer machine built for custom apparel businesses that want to work smarter. A brand-new controller with a larger, hig...
What you're buying.
Industrial-grade build, designed to run continuously through high-volume production days.
Why this machine.
About this machine.
The smartest heat press in the industry.
The Hotronix® Fusion IQ® is a digitally advanced heat transfer machine built for custom apparel businesses that want to work smarter. A brand-new controller with a larger, higher-resolution touch screen makes it easier than ever to modify settings and save recipes. To make sure you're getting a Hotronix®, look for the blue.
Patented dual function

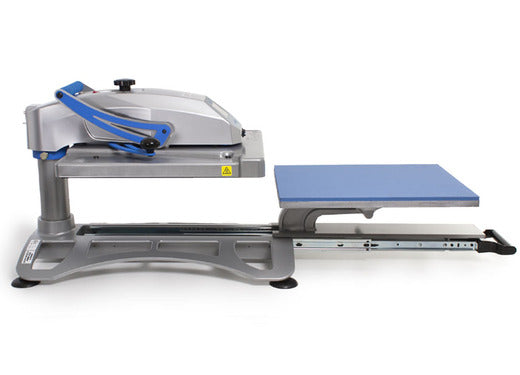

Operates as a swing or draw press for a heat-free workspace. Touch-screen technology lets you easily set time, temperature, and pressure, with unlimited preset programs and a live digital readout. Free ground freight within the continental US.
Additional features
- Online access to reporting, including total impressions, active/idle time, and average cycle time
- Self-diagnostics help with troubleshooting and maintenance
- 16″ × 20″ platen
- Threadability™ makes it easy to load garments onto the lower platen and print front, back, and sides
- Quick Change lower platens available for printing smaller items, hats, shoes, etc.
- Multiple time settings
- Auto on/off setting
- Multi-level password settings
- Energy-saving 4-hour sleep mode
- Production cycle counter
- Available in eight languages
- 3/4″ thick non-stick coated upper platen
- Set to F° or C°
- Easy-to-install interchangeable platens
- Live digital time, temperature, and pressure readout
- Temperature range 32°F – 430°F
- Cast-aluminum frame
- UL / ULC / CE / RoHS compliant
Premier Warranty
Lifetime warranty on the heating element. 5 years on framework. 2 years on circuit board. 1 year parts and labor.
Patents
The Hotronix® Fusion® Heat Press is protected by U.S. Patent No. 8,418,739.
Specifications
| Platen size | 16″ × 20″ |
|---|---|
| Upper platen | 3/4″ thick non-stick coated |
| Temperature range | 32°F – 430°F (Fahrenheit or Celsius) |
| Electrical options | 120V / 15A / 1800W or 240V / 15A / 3500W (designated circuit breaker required) |

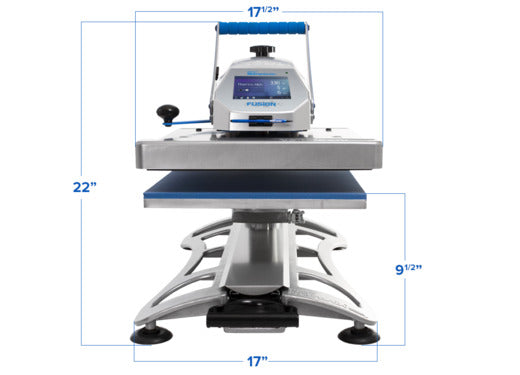

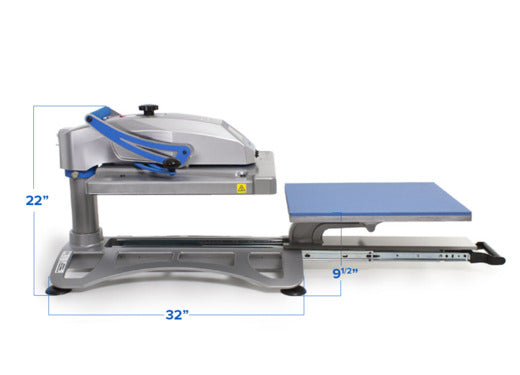

| Actual dimensions | 32″ × 18″ × 20″ |
| Shipping dimensions | 37″ × 25″ × 24″ |
| Actual weight | 137 lb |
| Shipping weight | 150 lb |
| Certifications | SGS certified to UL standards; CE / RoHS approved |
| Patent | U.S. Patent No. 8,418,739 |
| Warranty | Lifetime heating element, 5 yr framework, 2 yr circuit board, 1 yr parts/labor |
| Country of origin | Made in USA |
Video
Documents
Service that keeps you running.
An industrial machine that doesn't print is just a heavy table. We've spent 30 years making sure that doesn't happen — installations, training, parts in stock, same-week service across SoCal.
On-site install
Berto delivers and installs. Day-of training included.
Same-week service
Field service across SoCal. No "wait two weeks for a tech."
Parts in stock
Common consumables and replacement parts ship same-day.
Training included
First-day operator training plus access to our Saturday workshops.
Everything that runs on this.
Inks, films, parts, and accessories — stocked and shipped from our SoCal warehouse.
Talk to a dealer who runs the same equipment.
Tell us what you're producing and what you're trying to fix. We'll send a quote with the right config and schedule a demo at our showroom.
