HotronixAir Fusion IQ
The world's most advanced heat press just got smarter — now with the Fusion IQ® Controller Plus. The Air Fusion IQ® is a semi-automatic, air-powered heat press engineered for high-volume custom apparel production. A ...
What you're buying.
Industrial-grade build, designed to run continuously through high-volume production days.
Why this machine.
About this machine.
The world's most advanced heat press just got smarter — now with the Fusion IQ® Controller Plus.
The Air Fusion IQ® is a semi-automatic, air-powered heat press engineered for high-volume custom apparel production. A brand-new controller with a larger, higher-resolution touch screen makes it easier than ever to modify settings and save recipes. Hands-free auto-swing keeps operators in a heat-free workspace, while the two-button interface paired with the air compressor reduces operator fatigue across long production runs.
Features
- 16″ × 20″ upper platen
- Stores hundreds of application settings
- Adjustable stand creates an ergonomic workspace for multiple users
- Threadability™ — load garments once and easily rotate from front to back

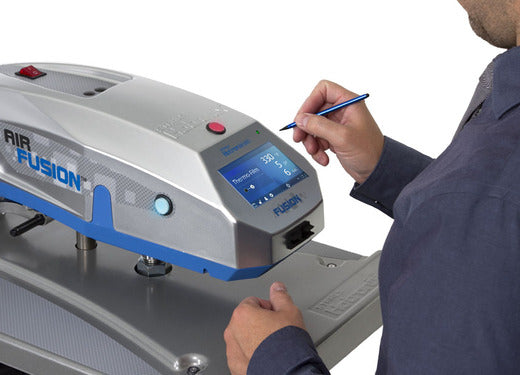

- Exclusive touch-screen controller with new multi-swipe gestures
- Data interface port for software upgrades
- Live digital time, temperature, and pressure readout
- Energy-saving 4-hour sleep mode
- Production cycle counter
- Self-diagnostic troubleshooting and online reporting (impressions, active/idle time, cycle time)
- UL / ULC / CE / RoHS compliant
Build & construction
- 3/4″ heat platen with fast-recovering heater technology
- Die pressure cast 356 aluminum, corrosion-free framework
- Multiple time and pressure settings — application is a breeze
- Program and store frequently used applications
- Innovative EZ-On platen design eliminates the need for pillows or pads
- 120 PSI for heavy-pressure applications
- User-safe two-hand operation
- Digital read-outs
- Optional smaller interchangeable platens (compatible with all Quick Change Platens)
- Tapered roller bearings with progressive stop dampers for smooth swing operation
- The industry's only adjustable-height stand
- Proudly made in the USA

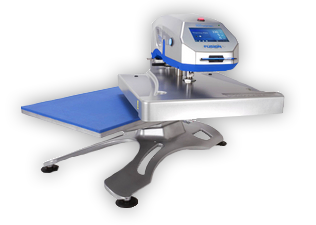

Table Top Air Fusion
With the same great features — including touch-screen controller, semi-automatic operation, and Threadability™ — the Table Top Air Fusion harnesses the power and convenience of the Air Fusion into a space-saving unit.
Hotronix Air Compressor
For use with the Hotronix Air Fusion, Table Top Air Fusion, and Air Swinger heat presses. The Air Fusion IQ requires an air compressor (not included) with a minimum 1/2 horsepower and 2.5-gallon hold tank; the press uses 2.3 CFM.
Premier Warranty
Lifetime warranty on the heating element. 5 years on framework. 2 years on circuit board. 1 year parts and labor.
Specifications — Air Fusion IQ (Pedestal)
| Upper platen | 16″ × 20″ |
|---|---|
| Platen thickness | 3/4″ with fast-recovering heater |
| Maximum pressure | 120 PSI |
| Electrical options | 120V / 15A / 1800W or 240V / 15A / 3500W (designated circuit breaker required) |

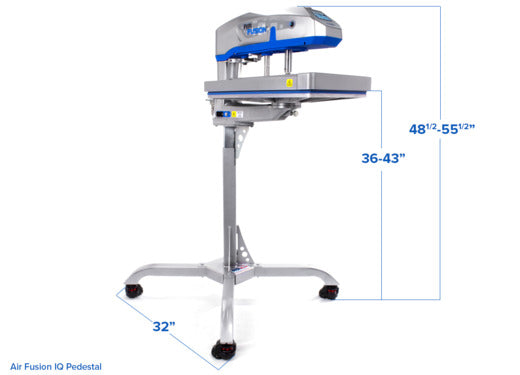

| Actual dimensions | 40″ × 32″ × 57″ (stand at maximum height) |
| Shipping dimensions | 40″ × 48″ × 58″ |
| Actual weight | 152 lb |
| Shipping weight | 245 lb |
| Framework material | Die pressure cast 356 aluminum |
| Air compressor requirement | Minimum 1/2 HP, 2.5-gallon tank, 2.3 CFM usage |
| Warranty | Lifetime heating element, 5 yr framework, 2 yr circuit board, 1 yr parts/labor |
| Country of origin | Made in USA |
Specifications — Table Top Air Fusion
| Actual dimensions | 34″ × 18″ × 24″ |
|---|---|
| Actual weight | 126 lb |
| Shipping dimensions | 37″ × 24″ × 27″ |
| Shipping weight | 154 lb |
Specifications — Hotronix Air Compressor
| Amperage | 4.8 |
|---|---|
| Average air consumption | 2.5 CFM |
| Capacity | 6.6 gal |
| Horsepower | 3/4 HP |
| Maximum pressure | 120 PSI |
| Voltage | 120V |
| Dimensions (H × W × L) | 15″ × 18″ × 15″ |
| Weight | 53.1 lb |
| Decibels | 70 |
| Warranty | 90 day |
